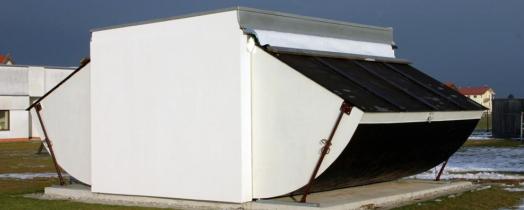

Flexible test facility for flat and pitched roof
| Measurement object | Pitched roof constructions with between and top rafter insulation or combinations: solutions for gableboard or eaves, solar systems |
Technical data
| Ground area | 42 m² |
| Number of test rooms | 4 test rooms, thereof 2 northern-oriented and 2 southern-oriented |
| Room volume/ Floor area | Per test room 6 m³ room volume with 7.45 m² floor area |
| Net test area (L × W) | Pitched roof areas: each 2.5 × 2.5 m Fixed flat roof: 4.0 × 5.5 m |
Special features
| Flexible slope of the roof | Adjustable between 22 and 50° with steps of 1° without replacing the roof construction |
| HVAC | Heating and ventilation system for floor and room heating, local humidification to enable daily moisture load profiles |
| Measurement equipment | Networked data logging, optionally external access, basic metrological equipment; upgrading depending on requirements possible using existing subdistribution panels |
