Durability with driving rain impact

Hygrothermics

© Fraunhofer IBP
Measurement Weathering, field experiments, durability
Measurement object Whole wall segments on a building facing towards east or west

Technical data

Sample size Individual wall segments have a width of 1.20 m and height of 2.80 m
Field test Installation of a wall construction in a test building
  Orientation to east and/or west
Measured variables Weathering of fibrous insulation materials under natural conditions by:

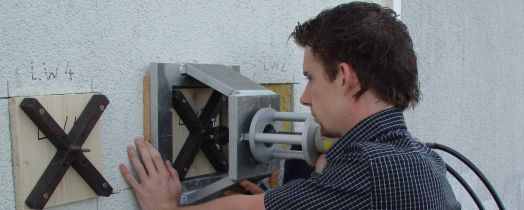

Determination of pull-off strength
Determination of dirt collection
Dilatation tests
Protection against driving rain

Special features

Accredited by DAkkS
D-PL-11140-11-02
The laboratory has a flexible accreditation according to DIN EN ISO/IEC 17025
Test laboratory moisture, mortar, radiation, emmissions
  Test report can be issued

More information



At a test building on the test field whole wall segments can be torn down and reconstructed. The building is air-conditioned in winter to an indoor climate of +20 °C and 50 % r.h. Test duration is at least a period of 6 month up to several years. Temperature and moisture measurements on the wall sequence can be used for validation of WUFI® simulations.
