Sound power in a reverberation room

Acoustics

© Fraunhofer IBP
Measurement Sound power
Standard DIN EN ISO 3741
Measurement object Machinery and equipment, for example of ventilation and air-conditioning systems, air terminals and other noise sources


Technical data

Floor area 60 m2
Room volume 392 m3
Entrance door (H × W) 1,9 m × 2,4 m


Special features

Connection to a semi-anechoic room Measurement of sound insulation and sound absorption of elements between reverberation and anechoic room
Size of the connecting door (measuring surface) 3,80 m × 2,35 m

More information

  • Controllable air-condition system for the adjustment of temperature and humidity
  • Low vibration doors with high sound reduction
  • Suppressed excitation of structure-borne sound of the walls due to a special basement

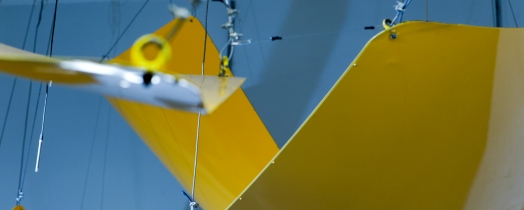

Reverberation Room
